Creherit Breathable Foam Vent Liner

Technical Parameters


Aiflow:500-3000ml/min/cm2
IP Rate:IP67-IP68
Vent Membrane Material:ePTFE
Vent Membrane Features:Waterproof,Dustproof,Breathable
Color:White
Shape:Round
Body Material:PE

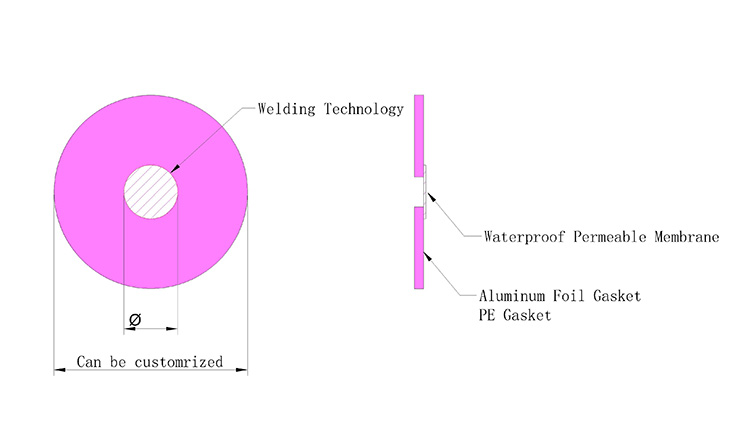

Design & size


Use advantage




透气垫片-英文 拷贝.jpg

Technical Solution


What are the main applications of vent liner?
Breathable gaskets are mainly used in chemical, agricultural, food and other packaging areas.

How to correctly choose breathable vent liner?
The selection of breathable gaskets is related to the type of packaging liquid, sealing form, installation size, breathability requirements, etc. Please consult the sales staff of the company.

What are the characteristics of breathable vent liner ?
The main features are dustproof, leak proof and breathable.

Can the bucket / bottle leak if using gaskets?
After using gaskets, there will be no leakage.
1. bottles of liquid inverted or rollover for a long time resulting in leakage after airtight.
2. There are no holes in the outer cover. The leakage of liquid is caused by gas breaking through the permeable film. 3. The surface tension of liquid is too low, which leads to leakage.

How about the acid and alkali resistance of breathable vent liner?
Conventional breathable gaskets recommend pH at 5~9.

Protection & application

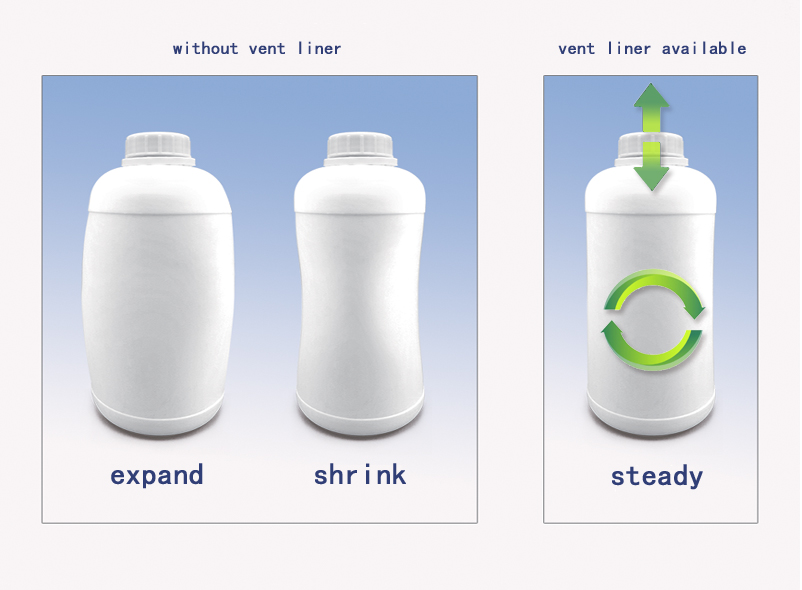

For the container cover with holes, the gas will pass through the porous expanded polytetrafluoroethylene (ePTFE) permeable film and escape through the holes on the container cover, while preventing the liquid and particles from entering the packaging. The porous expanded polytetrafluoroethylene (ePTFE) permeable membrane prevents pressure accumulation by continuously balancing the pressure differenc between the internal and external environment of the container.




For the non-porous container cover, the gas will pass through the porous expanded polytetrafluoroethylene (ePTFE) permeable film to reach the area above the permeable film, and then be guided to the screw position of the container cover to escape, while preventing the liquid and particles from entering the packaging. The porous expanded polytetrafluoroethylene (ePTFE) permeable membrane prevents pressure accumulation by continuously balancing the pressure difference between the internal and external environment of the container.



Installation & instructions

Product installation and description

1. Please avoid contact with sharp objects, do not touch or squeeze film.

2. Wear gloves or fingernails during the operation.

3. Don't wash or reuse.
