Creherit Plastic PA6 Waterproof M5*0.8 Screw Vent

Technical Parameters


Air permeability:0.5l/min
IP Rate :IP68
Vent Memrbane Material:ePTFE
Vent Membrane Features:Waterproof,Dustproof,Breathable
Body Material:Black/Gray
Temperature:-40℃~110℃
Body Material:PA6

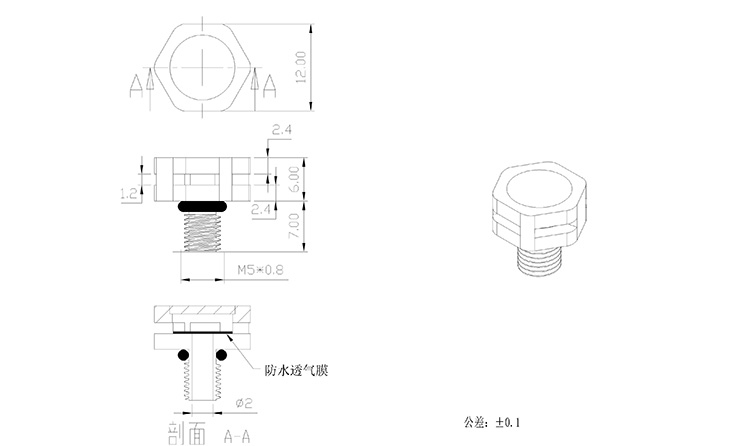

Design & size


Use advantage

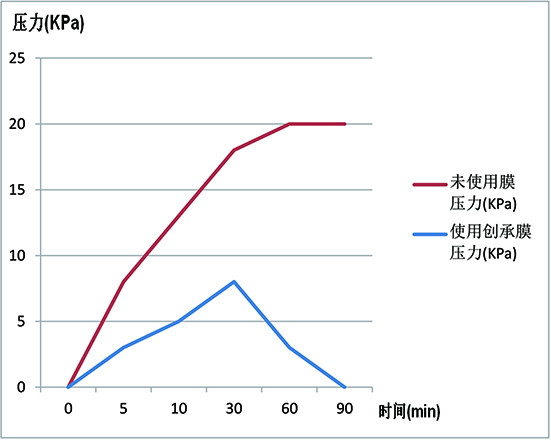

Using 2 identical lamps and lanterns, the lighting time will last 90min.

The internal pressure of headlamps without waterproof and breathable screw vents increased rapidly and eventually stabilized.

The internal pressure of the headlights increased slowly and gradually tended to zero with the waterproof and breathable screw vents.

Technical Solution


What are the main applications of waterproof and breathable screw vents?

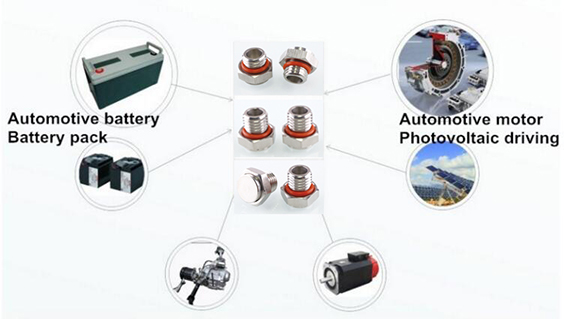

Waterproof breathable screw vent is mainly used in automotive parts, outdoor lighting, communication equipment, circuit control, motor, new energy and other fields.

How to choose waterproof and breathable screw vents correctly?
Selection and use of waterproof and breathable screw vent direction, installation size, working temperature, breathable requirements, protection requirements and other items related to the specific consulting company sales staff.

What are the characteristics of waterproof and breathable screw vents?
The main features are dustproof, waterproof and breathable.

What is the rating of waterproof breathable screw vents?
It is IP68.

Can waterproof and ventilating screw vents be customized?
The metal waterproof and breathable vents can be made according to the drawings. The plastic waterproof and breathable screw vents need to be moulds and custom-made.

Protection & application




Installation & instructions
